Hoists, Pulley Blocks & TrolleysSpring Balancers

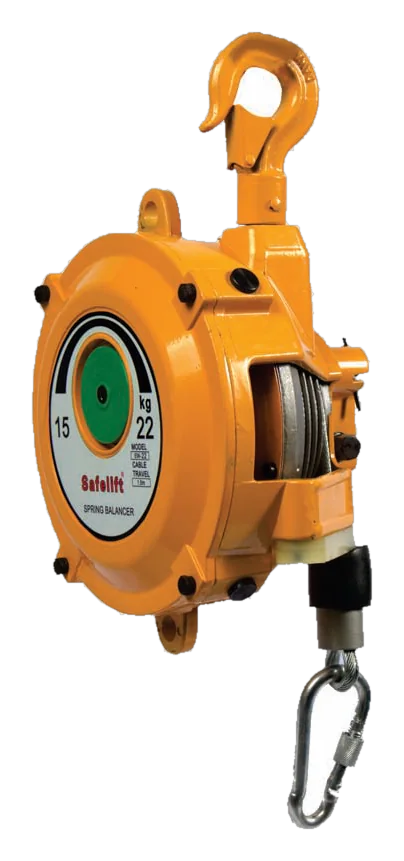

Spring Balancer
6 models · 1-3 to 22-30 kg
Spring Balancer. 6 models are listed, each with its item code.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Choose a size
Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.
No size selectedChoose one below and it's added to your WhatsApp / email enquiry.
6 sizes listed
| Select | Item Code | Capacity (kg) | Travel (m) | Cable (φmm) | N.W (kg) |
|---|---|---|---|---|---|
| SB001003 | 1-3 | 1.5 | 3.2 | 1.5 | |
| SB003005 | 3-5 | 1.5 | 3.2 | 1.5 | |
| SB005009 | 5-9 | 1.5 | 4.2 | 4.5 | |
| SB009015 | 9-15 | 1.5 | 4.2 | 4.5 | |
| SB015022 | 15-22 | 1.5 | 5.2 | 8.5 | |
| SB022030 | 22-30 | 1.5 | 5.2 | 9 |
Technical data
Specifications
- Certification
- CE certified
- Parts shown
- The lifting instruction; The plug-in type cable; The spring box; The cydariform locking device; The ratchet device; The device for preventing dropping; The springback protection; The manual spring-loaded governor; The cover; The worm gear spring-loaded governor; The ratchet system spring-load governor
