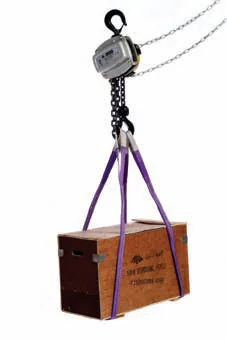

Chain Pulley Block (Revolve Series, 360° Hand Chain Guide)
5 models · 1 to 10 t
Chain Pulley Block (Revolve Series, 360° Hand Chain Guide) — hand chain hoist designed for heavy industrial applications. This 360° rotating hand chain guide allows hoist operations from various angles and helps the operator stay out of the danger zone. 5 models are listed, each with its item code.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Choose a size
Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.
No size selectedChoose one below and it's added to your WhatsApp / email enquiry.
5 sizes listed
| Select | Item Code | Capacity (Ton) | Test Load | Hand Chain Pull to Lift Rated Load (kg) | Hand Chain Overhauled to Lift Load One Foot (kg) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension E (mm) | Dimension F (mm) | Net Weight (kg) | Extra Weight Per Meter of Extra Lift |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CBRL0103 | 1 | 1.25 | 25.00 | 14.93 | 355.6 | 22 | 26.6 | 14.3 | 176 | 155.6 | 7.2 | 1.15 | |
| CBRL0203 | 2 | 2.5 | 32.00 | 21.64 | 395 | 30 | 35.0 | 20.6 | 203 | 182.5 | 11 | 1.65 | |
| CBRL0303 | 3 | 3.75 | 35.00 | 26.51 | 520 | 38 | 39.7 | 25.4 | 224 | 220.0 | 14.5 | 3.2 | |
| CBRL0503 | 5 | 6.25 | 36.5 | — | 636 | 50 | 50 | 90 | 48 | 280 | 23.5 | 4.65 | |
| CBRL1003 | 10 | 12.5 | 37.7 | — | 798 | 65 | 87 | 90 | 53 | 300 | 47 | 6.7 |
Technical data
Specifications
- Feature
- Hand chain hoist designed for heavy industrial applications
- Feature
- This 360° rotating hand chain guide allows hoist operations from various angles and helps the operator stay out of the danger zone
- Feature
- Premium brake system ensures safe operation, low maintenance and is extremely quiet. Sealed roller bearings
- Feature
- Strength: Equipped with hardened load chain for optimum strength, flexibility and long wear life
- Feature
- Low maintenance: Enclosed housing allows outdoor use. The load brake requires no lubrication
- Feature
- Quality features: Wheel cover with guide slots guard against jamming and slipping of chain. Forged swivel hooks and latches prevent twisting of chain and reduce unintentional unhooking of the unit or the load. Chain guide and stripper ensures proper fit of chain over pocket wheel. Two-stage gear reduction with hardened gears and pinion
