Hoists, Pulley Blocks & TrolleysElectric Chain Hoists

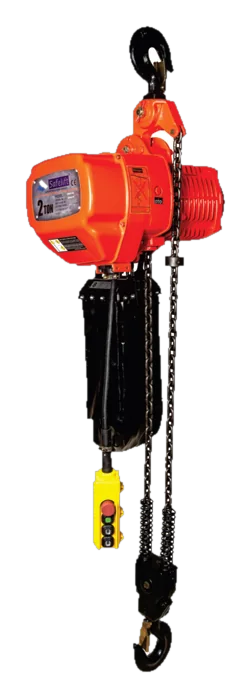

Electric Chain Hoist — Single Speed
7 models · 0.5 to 10 t
Electric Chain Hoist, Single Speed — aluminium alloy shell, G80 heat-treated alloy steel load chain, IP 55 protection and upper & lower limit switches. 7 models are listed, each with its item code.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Choose a size
Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.
No size selectedChoose one below and it's added to your WhatsApp / email enquiry.
7 sizes listed
| Select | Item Code | Capacity in Tonnes | Lifting Speed (m/min) | Motor Power (Kw) | Rotation Speed (r/min) | Insulation Grade | Power Supply | Control Voltage | No. of Chain | Spec. Of Load Chain | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MHSL00505 | 0.5 | 7.2 | 0.8 | 1440 | F | 3P220V~690V | 24V/36V/48V | 1 | ϕ6.3 | 47 | |
| MHSL0105 | 1 | 6.6 | 1.5 | 1440 | F | 3P220V~690V | 24V/36V/48V | 1 | ϕ7.1 | 61 | |
| MHSL0205 | 2 | 3.3 | 1.5 | 1440 | F | 3P220V~690V | 24V/36V/48V | 2 | ϕ7.1 | 73 | |
| MHSL0305 | 3 | 5.4 | 3.0 | 1440 | F | 3P220V~690V | 24V/36V/48V | 1 | ϕ11.2 | 122 | |
| MHSL0505 | 5 | 2.7 | 3.0 | 1440 | F | 3P220V~690V | 24V/36V/48V | 2 | ϕ11.2 | 151 | |
| MHSL7505 | 7.5 | 1.8 | 3.0 | 1440 | F | 3P220V~690V | 24V/36V/48V | 3 | ϕ11.2 | 176 | |
| MHSL1005 | 10 | 2.7 | 3.0X2 | 1440 | F | 3P220V~690V | 24V/36V/48V | 4 | ϕ11.2 | 300 |
Technical data
Specifications
- Feature
- Shell: made of light aluminum alloy shell, light but hard
- Feature
- Support frame: the loading support frame consists of two steel plates, which is extremely sturdy
- Feature
- Transformer: 24V/36V transformer device
- Feature
- Side magnetic braking device: the magnetic force generator is the latest design which is featured for generating magnetic force
- Feature
- IP 55 protection
- Feature
- Electromagnetic contactor: electromagnetic contactor can be used safely under high frequency
- Feature
- Chain: g 80 ultra heat-treated steel alloy chain
- Feature
- Inverse phases sequence protecting device: the special electrical installation which controls the circuit not to work in case of wiring error in the power supply
- Feature
- Push button: waterproof push button is supplied
- Feature
- Upper & lower limit switch is installed to prevent damage due to excessive lifting or lowering
- Feature
- Hook: drop forged with perfect strength that is hard to break
- Size Specification (Mm) — Capacity (T) 0.5
- Dimension H (mm): 530 · Dimension A (mm): 460 · Dimension B (mm): 230 · Dimension D (mm): 288 · Dimension E (mm): 178
- Size Specification (Mm) — Capacity (T) 1
- Dimension H (mm): 650 · Dimension A (mm): 520 · Dimension B (mm): 260 · Dimension D (mm): 300 · Dimension E (mm): 176
- Size Specification (Mm) — Capacity (T) 2
- Dimension H (mm): 835 · Dimension A (mm): 520 · Dimension B (mm): 260 · Dimension D (mm): 300 · Dimension E (mm): 236
- Size Specification (Mm) — Capacity (T) 3
- Dimension H (mm): 845 · Dimension A (mm): 615 · Dimension B (mm): 295 · Dimension D (mm): 430 · Dimension E (mm): 265
- Size Specification (Mm) — Capacity (T) 5
- Dimension H (mm): 1000 · Dimension A (mm): 615 · Dimension B (mm): 295 · Dimension D (mm): 430 · Dimension E (mm): 325
- Size Specification (Mm) — Capacity (T) 7.5
- Dimension H (mm): 1200 · Dimension A (mm): 615 · Dimension B (mm): 295 · Dimension D (mm): 505 · Dimension E (mm): 320
- Size Specification (Mm) — Capacity (T) 10
- Dimension H (mm): 1400 · Dimension A (mm): 630 · Dimension B (mm): 315 · Dimension D (mm): 890 · Dimension E (mm): 445
