Polyester Duplex Webbing Sling

15 models · WLL 1000 to 50000

EN 1492-1:2000
15 sizes listed

Polyester Duplex Webbing Sling — can be single ply, double ply or four ply. The specification can be adjusted according to the customer's needs. 15 models are listed. Standard: EN 1492-1:2000, ASME B 30.9, IS 15041.

SizeNot selected Choose a size

Direct Enquiry

Interested in this product?

Get pricing, availability and product details from Steel Tools India.

WhatsApp Enquiry

Request Quote by Email

Several items or a drawing to send? Use the quote form
Prefer to talk? Call +91 98302 58198

Sizes & variants

Choose a size

Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.

No size selectedChoose one below and it's added to your WhatsApp / email enquiry.

Find a size

15 sizes listed

Single Max Working Load Limit - Upright (P 1.0)	Color	Single Max Working Load Limit - Chocked (P 0.8)	Single Max Working Load Limit - β 0°-7° (P 2.0)	Single Max Working Load Limit - β 7°- 45° (P 1.4)	Single Max Working Load Limit - β 45°- 60° (P 1.0)	Single Max Working Load Limit - β 45° (P 0.7)	2-Legs Max. Working Load Limit - Upright 45° (P 1.4)	2-Legs Max. Working Load Limit - Chocked 45° (P 1.12)	2-Legs Max. Working Load Limit - Upright 45°-60° (P 1.0)	2-Legs Max. Working Load Limit - Chocked 45°-60° (P 0.8)	Approx Width (mm) - 5:1	Approx Width (mm) - 6:1	Approx Width (mm) - 7:1
1000	Violet	800	2000	1400	1000	700	1400	1120	1000	800	25	25	30
2000	Green	1600	4000	2800	2000	1400	2800	2240	2000	1600	50	50	50
3000	Yellow	2400	6000	4200	3000	2100	4200	3360	3000	2400	75	75	75
4000	Grey	3200	8000	5600	4000	2800	5600	4480	4000	3200	100	100	100
5000	Red	4000	10000	7000	5000	3500	7000	5600	5000	4000	125	125	125
6000	Brown	4800	12000	8400	6000	4200	8400	6720	6000	4800	150	150	150
8000	Blue	6400	16000	11200	8000	5600	11200	8960	8000	6400	200	200	200
10000	Orange	8000	20000	14000	10000	7000	14000	11200	10000	8000	250	250	250
12000	Orange	9600	24000	16800	12000	8400	16800	13440	12000	9600	300	300	300
16000	Blue	12800	32000	22400	16000	11200	22400	17920	16000	12800	200	200	200
20000	Orange	16000	60000	42000	20000	21000	42000	33600	20000	16000	250	250	250
24000	Orange	20000	50000	35000	25000	17500	35000	28000	25000	20000	300	300	300
30000	Orange	24000	60000	42000	30000	21000	42000	33600	30000	24000	300	250	—
40000	Orange	32000	80000	56000	40000	28000	56000	44800	40000	32000	—	250	—
50000	Orange	40000	100000	70000	50000	35000	70000	56000	50000	40000	—	—	—

Technical data

Specifications

Standard: EN 1492-1:2000, ASME B 30.9, IS 15041
Certification: ISI approved
Feature: Can be single ply, double ply or four ply
Feature: The specification can be adjusted according to the customer's needs
Feature: Loading surface is wide, to reduce the weight at each loading point
Feature: No damage to tender objects
Feature: Various loading method
Feature: High strength / weight ratio
Feature: Anti-abrasion and anti-cutting protection sleeve can be attached
Feature: Has special label, working load is differentiated by colors according to international standard
Feature: Light and soft, can be used in small narrow space
Feature: Non-conductive, no danger of electric stroke
Feature: In compliance with European standard EN 1492-1:2000, ASME B 30.9 & IS 15041
Safe use: Sling should be examined before using. if intact; use a protection sleeve in case of lifting items with sharp edges; watch the angle; do not allow the load to rest on the sling. Do not drag the load on the sling; do not over load the sling and take notice of the temperature; be careful with chemicals; slings should never be knotted or twisted; do not use damaged slings

Polyester Duplex Webbing Sling

Choose a size

Polyester Duplex Webbing Sling

Interested in this product?

Choose a size

Specifications

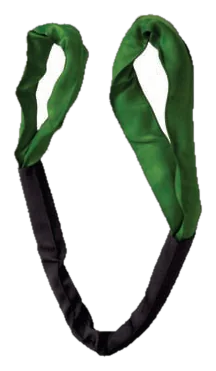

Polyester Round Sling
