Lifting Chain, Hooks & RiggingG80 Hooks

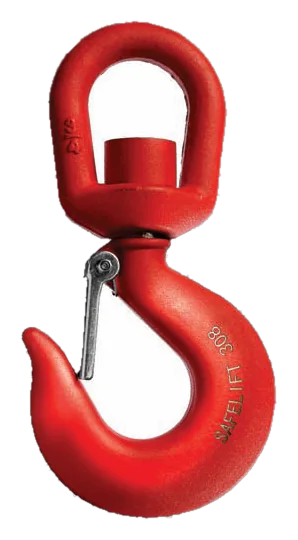

G80 Swivel Eye Hook
6 models · Cap. 1 to 11
G80 Swivel Eye Hook — forged super alloy steel. 100% tested at 2.5 times working load limit. 6 models are listed, each with its item code. Standard: EN 818-8.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Choose a size
Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.
No size selectedChoose one below and it's added to your WhatsApp / email enquiry.
6 sizes listed
| Select | Item Code | Capacity | Dimension A | Dimension B | Dimension C | Dimension D | Dimension E | Dimension H | Dimension K | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| SEHSL081 | 1 | 29 | 23.5 | 10.4 | 11.2 | 19.5 | 21.2 | 110.2 | 0.43 | |
| SEHSL082 | 2 | 41 | 37.8 | 21.1 | 14.6 | 21.5 | 29 | 146.5 | 1.05 | |
| SEHSL083 | 3 | 44.1 | 40.6 | 23.5 | 16.2 | 24.5 | 30 | 161 | 1.3 | |
| SEHSL085 | 4.5 | 49.5 | 42.5 | 28.4 | 19.1 | 31.5 | 37.5 | 190 | 2.3 | |
| SEHSL087 | 7 | 62 | 55.4 | 35.3 | 25.4 | 38.4 | 48 | 247 | 4.9 | |
| SEHSL811 | 11 | 68.5 | 61.5 | 41.2 | 28.4 | 47.5 | 57.1 | 292 | 7.29 |
Technical data
Specifications
- Standard
- EN 818-8
- Feature
- Forged super alloy steel
- Feature
- 100% tested at 2.5 times working load limit
- Feature
- 100% magnaflux crack detection
- Feature
- Ultimate break load tested
- Feature
- Fatigue tested at 1.5 times working load limit for 20000 cycles
- Feature
- Suitable for EN 818-8 Gr.80 chain
- Feature
- All shackles are drop forged
