Lifting Chain, Hooks & RiggingEye Bolts

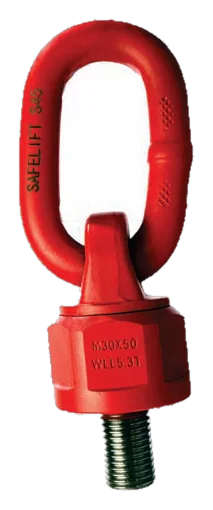

G80 Rotating Lifting Eye Bolt
13 models · Cap. 0.3 to 15
G80 Rotating Lifting Eye Bolt — forged super alloy steel. 100% tested at 2.5 times working load limit. 13 models are listed, each with its item code. Standard: EN 818-2.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Choose a size
Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.
No size selectedChoose one below and it's added to your WhatsApp / email enquiry.
13 sizes listed
| Select | Item Code | Capacity | SIZE (mm) | Dimension A | Dimension B | Dimension C | Dimension D | Dimension E | Dimension K | Dimension M | Dimension N | Dimension R | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RBSL0808 | 0.3 | M8 | 44.5 | 36.3 | 16.5 | 7.9 | 12.5 | 52.5 | 52.5 | 29.2 | 13.5 | 0.45 | |
| RBSL0810 | 0.45 | M10 | 45.5 | 36.4 | 16.1 | 9.91 | 18.5 | 54.56 | 53.5 | 30.3 | 13.5 | 0.45 | |
| RBSL0812 | 0.5 | M12 | 46.2 | 36.3 | 16.3 | 11.75 | 18.5 | 53.8 | 56.6 | 27.8 | 13.5 | 0.45 | |
| RBSL0816 | 1.12 | M16 | 46.2 | 36.3 | 16.7 | 15.87 | 19.87 | 73.1 | 53.5 | 28.04 | 13.3 | 0.45 | |
| RBSL0820 | 2 | M20 | 73 | 60.2 | 24.5 | 19.75 | 30.1 | 82 | 85.5 | 41.2 | 18.6 | 1.54 | |
| RBSL0824 | 3.15 | M24 | 73 | 60.3 | 28.5 | 23.8 | 30.1 | 82 | 85.5 | 41.5 | 18.6 | 1.55 | |
| RBSL0830 | 5.3 | M30 | 95.5 | 80.3 | 26.5 | 29.8 | 50.5 | 111.5 | 113.5 | 47.8 | 25 | 4.01 | |
| RBSL0830 | 8 | M30 | 90 | 80 | 30 | 30 | 50 | 110 | 115 | 50 | 25 | 3.75 | |
| RBSL0836 | 8 | M36 | 90 | 80 | 36 | 36 | 54 | 110 | 115 | 50 | 25 | 3.81 | |
| RBSL0842 | 10 | M42 | 106.5 | 93 | 41.7 | 41.7 | 63.5 | 124.5 | 135.2 | 63 | 28 | 6.32 | |
| RBSL0848 | 10 | M48 | 92 | 80 | 47.5 | 47.5 | 50.2 | 113 | 111 | 52 | 25.3 | 4.2 | |
| RBSL0856 | 15 | M56 | 137 | 105.3 | 56 | 56 | 84.5 | 155 | 157 | 68.5 | 32.2 | 10.1 | |
| RBSL0864 | 15 | M64 | 138 | 105.3 | 63.5 | 63.5 | 95.5 | 160 | 157 | 68 | 32.2 | 10.9 |
Technical data
Specifications
- Standard
- EN 818-2
- Feature
- Forged super alloy steel
- Feature
- 100% tested at 2.5 times working load limit
- Feature
- 100% magnaflux crack detection
- Feature
- Break test
- Feature
- Fatigue tested at 1.5 times working load limit for 20000 cycles
- Feature
- Pins are 100% eddy-current test flaw detection
- Feature
- Suitable for EN 818-2 G80 chain
