Lifting Chain, Hooks & RiggingG80 Hooks

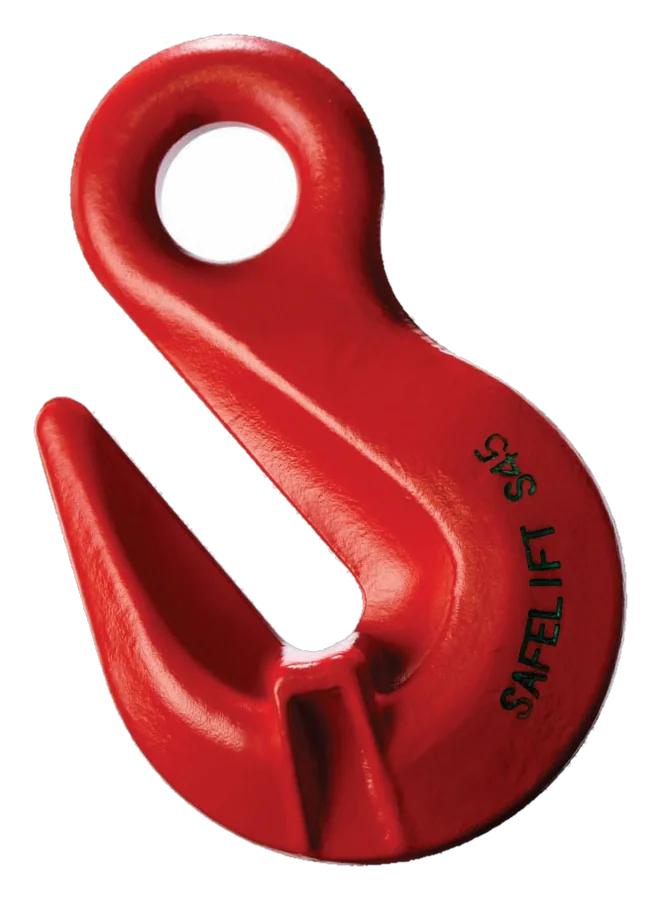

G80 Eye Grab Hook
7 models · WLL 1.12 to 15
G80 Eye Grab Hook — forged super alloy steel. 100% tested at 2.5 times working load limit. 7 models are listed, each with its item code. Standard: EN 818-8.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Choose a size
Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.
No size selectedChoose one below and it's added to your WhatsApp / email enquiry.
7 sizes listed
| Select | Item Code | W.L.L | Chain Size (mm) | Dimension A | Dimension B | Dimension C | Dimension D | Dimension E | Dimension F | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| GHSL0801 | 1.12 | 6 | 13.2 | 48.5 | 76.5 | 7.6 | 9.8 | 25.3 | 0.17 | |
| GHSL0802 | 2 | 8 | 16 | 59.1 | 90.5 | 10.8 | 9.75 | 31.2 | 0.28 | |
| GHSL0803 | 3.15 | 10 | 20.1 | 78.5 | 120 | 13.1 | 13.3 | 44.6 | 0.65 | |
| GHSL0805 | 5.3 | 12 | 25.7 | 96 | 195.5 | 15.6 | 17.5 | 57.1 | 1.45 | |
| GHSL0808 | 8 | 16 | 29.3 | 106 | 167 | 18.7 | 18.1 | 66.3 | 2.16 | |
| GHSL0812 | 12.5 | 18, 20 | 36.2 | 142 | 223 | 23.3 | 23.1 | 72.2 | 4.21 | |
| GHSL0815 | 15 | 22 | 44 | 162 | 255 | 28 | — | — | 8.2 |
Technical data
Specifications
- Standard
- EN 818-8
- Feature
- Forged super alloy steel
- Feature
- 100% tested at 2.5 times working load limit
- Feature
- 100% magnaflux crack detection
- Feature
- Ultimate break load tested
- Feature
- Fatigue tested at 1.5 times working load limit for 20000 cycles
- Feature
- Suitable for EN 818-8 Gr.80 chain
- Feature
- All shackles are drop forged
