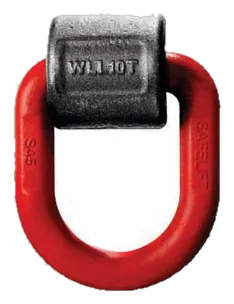

Weld On Ring
8 models · 1 to 20 t
Weld On Ring — forged super alloy steel. 100% tested at 4 times working load limit. 8 models are listed, each with its item code.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Choose a size
Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.
No size selectedChoose one below and it's added to your WhatsApp / email enquiry.
8 sizes listed
| Select | Item Code | Capacity (T) | Dimension A | Dimension B | Dimension D | Dimension M | Weight (kg) |
|---|---|---|---|---|---|---|---|
| WRSL0801 | 1 | 40.6 | 78.2 | 13.2 | 37.4 | 0.39 | |
| WRSL0802 | 2 | 42 | 88.1 | 14.1 | 40.5 | 0.49 | |
| WRSL0803 | 3 | 44.8 | 94.1 | 17.3 | 42.7 | 0.71 | |
| WRSL0805 | 5 | 55 | 119 | 22.4 | 51.3 | 1.78 | |
| WRSL0808 | 8 | 69.5 | 141 | 26.1 | 66.1 | 2.5 | |
| WRSL0810 | 10 | 84.4 | 165 | 28.2 | 76.7 | 3.52 | |
| WRSL0815 | 15 | 97.5 | 270 | 34 | 90 | 5.8 | |
| WRSL0820 | 20 | 146.5 | 270 | 46.5 | 120 | 15.26 |
Technical data
Specifications
- Feature
- Forged super alloy steel
- Feature
- 100% tested at 4 times working load limit
- Feature
- 100% magnaflux crack detection
- Feature
- Ultimate break load tested
- Feature
- Fatigue tested at 1.5 times working load for 20000 cycles
- Feature
- Pins are 100% eddy-current flaw detection
