Machine Tool AccessoriesBoring Heads

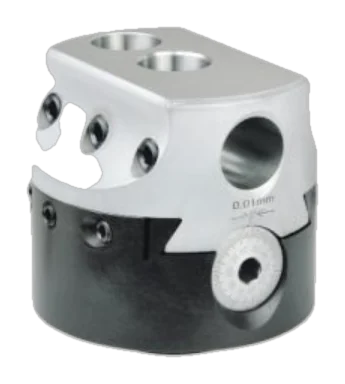

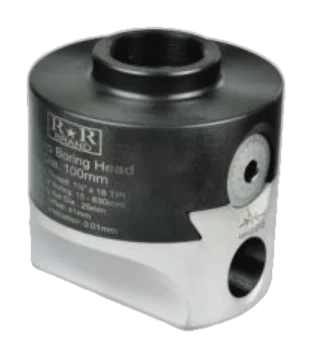

Micro Boring Head
50, 75, 100 mm · back thread 1.1/2" × 18 TPI
Micro boring heads with back thread 1.1/2" × 18 T.P.I. and minimum graduation 0.01 mm, listed in 50, 75 and 100 mm sizes. Supplied with three Allen keys.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Choose a size
Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.
No size selectedChoose one below and it's added to your WhatsApp / email enquiry.
4 sizes listed
| Select | Size | Dia of boring | Boring bar dia | Max offset |
|---|---|---|---|---|
| 50 mm | 10–125 mm | 12 mm | 16 mm | |
| 75 mm | 12–225 mm | 18 mm | 25 mm | |
| 75 mm | 12–225 mm | 20 mm | 25 mm | |
| 100 mm | 15–630 mm | 25 mm | 41 mm |
Technical data
Specifications
- Back thread
- 1.1/2" × 18 T.P.I.
- Min. graduation
- 0.01 mm
- Supplied with
- Three Allen keys
