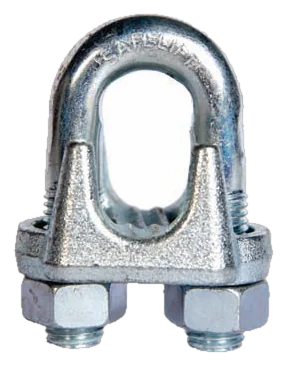

Galvanised Heavy Duty Wire Rope Clamp
14 models · 6 to 50 mm
Galvanised Heavy Duty Wire Rope Clamp. 14 models are listed, each with its item code.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Choose a size
Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.
No size selectedChoose one below and it's added to your WhatsApp / email enquiry.
14 sizes listed
| Select | Item Code | Size (mm) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) | Dimension F (mm) | Dimension G (mm) | WT/PC (kg) |
|---|---|---|---|---|---|---|---|---|---|
| UBSLGI06 | 6 | 13 | 18.5 | 15 | 5.6 | 23 | 24 | 0.03 | |
| UBSLGI08 | 8 | 18.3 | 24 | 19.5 | 7.5 | 32.2 | 34 | 0.07 | |
| UBSLGI10 | 10 | 21.2 | 28 | 20 | 9.5 | 38.2 | 40 | 0.12 | |
| UBSLGI12 | 12 | 25.6 | 33 | 25.5 | 11.7 | 44.5 | 49 | 0.2 | |
| UBSLGI15 | 15 | 29.4 | 37.5 | 33.6 | 13.5 | 51 | 59.1 | 0.31 | |
| UBSLGI20 | 20 | 36.5 | 43.5 | 40.5 | 15.5 | 60.3 | 735 | 0.49 | |
| UBSLGI22 | 22 | 40.5 | 48.7 | 45.5 | 17.5 | 66.5 | 79 | 0.68 | |
| UBSLGI25 | 25 | 45.5 | 55.5 | 48 | 19.5 | 74 | 85 | 0.91 | |
| UBSLGI28 | 28 | 51.5 | 62 | 62.5 | 21.5 | 83 | 112 | 1.53 | |
| UBSLGI32 | 32 | 56 | 71.3 | 71 | 22.8 | 91 | 121 | 2.07 | |
| UBSLGI36 | 36 | 64 | 75.5 | 74 | 23.1 | 95.3 | 130.5 | 2.46 | |
| UBSLGI40 | 40 | 66 | 77.5 | 81 | 23.1 | 100 | 150 | 2.73 | |
| UBSLGI45 | 45 | 72 | 88 | 70 | 27 | 123 | 137 | 4.75 | |
| UBSLGI50 | 50 | 85.5 | 94.7 | 105.5 | 29.5 | 133.5 | 195 | 6.67 |
