Material Handling EquipmentStackers

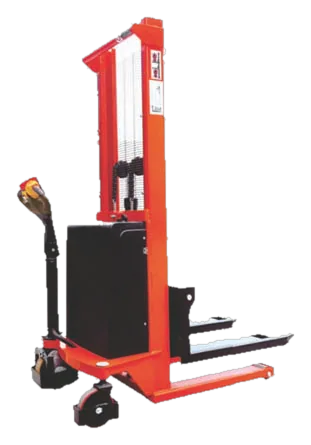

Electric Stacker
1 model · 1500 kg
Electric Stacker — lift function is electro hydraulic while movement is motorized suitable for all your lifting needs (racking, shelving, unloading etc). Compact design with strong steel construction. Listed with its item code.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India. Your enquiry will include FESSL130 · 1500 kg.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Listed size
SelectedFESSL130 · 1500 kg
1 size listed
| Select | Item Code | Load Capacity Q (kg) | Lift height H (mm) | Lift Height h1 (mm) | Load center C (mm) | Forks clearance from the ground-h (mm) | Fork length L (mm) | Maximum forks width W3 (mm) | Minimum ground clearance x (mm) | Traction speed (unlade/lade) (km/h) | Lifting speed (unlade) (mm/s) | Lifting speed ( lade) (mm/s) | Lowering speed (lade) (mm/s) | Minimum turning radius r (mm) | aisle width for pallets 1000x1000 (mm) | Front wheel dimensions d1 (mm) | Rear wheel dimension d2 (mm) | Total length L1 (mm) | Total width W (mm) | Battery volts/ampere (V/Ah) | battery charger | Lift motor (kw) | Traction motor (kw) | Gear pump (ml/r) | Battery weight (± 5%) (kg) | Truck weight (without battery) (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FESSL130 | 1500 | 3000 | 2080 | 500 | 85 | 1150 | 550 | 25 | 4.5/3 | 90±10% | 60 | <300 | 1500 | 2350 | Ø80x93 | Ø180x50 | 1800±20 | 820 | 24/80 | AC220V/50Hz DC24V/10A | DC24V-2.2KW | DC24V-0.75KW | CBWn-F2.5 | 45 | 440 |
Technical data
Specifications
- Item Code
- FESSL130
- Load Capacity Q (kg)
- 1500
- Lift height H (mm)
- 3000
- Lift Height h1 (mm)
- 2080
- Load center C (mm)
- 500
- Forks clearance from the ground-h (mm)
- 85
- Fork length L (mm)
- 1150
- Maximum forks width W3 (mm)
- 550
- Minimum ground clearance x (mm)
- 25
- Traction speed (unlade/lade) (km/h)
- 4.5/3
- Lifting speed (unlade) (mm/s)
- 90±10%
- Lifting speed ( lade) (mm/s)
- 60
- Lowering speed (lade) (mm/s)
- <300
- Minimum turning radius r (mm)
- 1500
- aisle width for pallets 1000x1000 (mm)
- 2350
- Front wheel dimensions d1 (mm)
- Ø80x93
- Rear wheel dimension d2 (mm)
- Ø180x50
- Total length L1 (mm)
- 1800±20
- Total width W (mm)
- 820
- Battery volts/ampere (V/Ah)
- 24/80
- battery charger
- AC220V/50Hz DC24V/10A
- Lift motor (kw)
- DC24V-2.2KW
- Traction motor (kw)
- DC24V-0.75KW
- Gear pump (ml/r)
- CBWn-F2.5
- Battery weight (± 5%) (kg)
- 45
- Truck weight (without battery) (kg)
- 440
- Feature
- Lift function is electro hydraulic while movement is motorized suitable for all your lifting needs (racking, shelving, unloading etc). Compact design with strong steel construction
