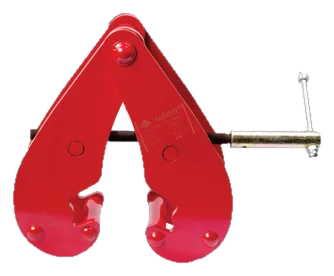

Beam Clamp
5 models · Cap. 1 to 10
Beam Clamp. 5 models are listed, each with its item code.
Direct Enquiry
Interested in this product?
Get pricing, availability and product details from Steel Tools India.
- Several items or a drawing to send? Use the quote form
- Prefer to talk? Call +91 98302 58198
Sizes & variants
Choose a size
Every size below is as listed in the catalogue. Select one and it's included in your enquiry automatically.
No size selectedChoose one below and it's added to your WhatsApp / email enquiry.
5 sizes listed
| Select | Item Code | Capacity | Dimension A Max | Dimension A Min | Dimension B Max | Dimension B Min | Dimension C | Dimension D | Dimension E | Dimension F | Dimension G | Dimension H | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEAMSL01 | 1 | 175 | 72 | 270 | 170 | 65.5 | 18 | 220 | 160 | 24.5 | 25.4 | 3.36 | |
| BEAMSL02 | 2 | 170 | 87.5 | 270 | 185 | 67.5 | 18 | 220 | 160 | 29.5 | 25.4 | 4.02 | |
| BEAMSL03 | 3 | 300 | 95.5 | 440 | 230 | 95.5 | 24.2 | 270 | 190 | 24.5 | 32 | 9.3 | |
| BEAMSL05 | 5 | 310 | 100 | 450 | 240 | 108.5 | 24.5 | 250 | 215 | 29.5 | 32 | 11.1 | |
| BEAMSL10 | 10 | 430 | 145 | 620 | 360 | 110 | 25.2 | 330 | 315 | 39.5 | 40 | 22.6 |
Technical data
Specifications
Detailed specifications are available on request.
